Home Theater Galleries
Home Theater Room (31)    Home Theater Planning and Building (17)    Media (5)    Previous Setup (since changed) (25)    DIY Jolida JD9 phono preamp tube opamp cap dampening upgrade guide (25)    DIY RCA interconnect cable (28)    DIY Pioneer Elite CLD-97 Laserdisc player AC3 mod (1)

Home Theater Room (31 photos)
Weighted average: 4.9, average: 4.9 of 5 (55 votes) (4.9) (55 ratings)

Uploaded Dec 28, 2011 17:20:33
I built this room from planning stage to completion in about 6 months with most of the work being done in a 3 week period near the end. As I have made changes I moved older pictures into the "Previous Setup" gallery (but not all). Comments are welcome!

The above pictures still shows my old Martin Logan speakers. Look at the end of this gallery to see the new Magnepan 20.1's.


Magnepan MG 20.1 Cherrywood and Black. Custom stands are very thick steel with cement and epoxy filling and coated with rubber. Crossover capacitors (35) replaced with Z capacitor (eliminating all 35 connections with point to point Jenna labs wire with cardas silver solder in the entire circuit). Fuses directly bypassed. Speaker stands on custom speaker feet marble stands.

Signal Cable Ultra Bi-Wire Speaker Cables with spade terminations
Custom interconnect cables w/ locking RCA plugs and Belden LC-1 cable

Polk Audio RT600's (x4)
Polk Audio RT450's (x2)
Polk Audio LSiC Center Speaker
Hsu Research VTF-15H with rosenut veneer Subwoofer

Conrad Johnson Evollution 2000 Amplifier (Mods: Universal power cable connect added)
Conrad Johnson PV-12 Preamplifier
Conrad Johnson D/A-2b Vacuum-Tube Digital Processor (Tice Power Cord upgrade and optional ST fiber connector)
Jolida JD9 phono preamp (Mods: JJ Tesla 12AX7 matched tubes, Obbligato Premium Film 1.0uF 630V caps, OPA637AP opamps, Sound Damping Sheet applied to interior)
Onkyo TX-SR875 Receiver
SONY SDP-E800 (used as AC-3 RF Demodulator for Laserdisc player)

Rega Planar 3 Turntable (Rega RB300 Tonearm. Dynavector 10X5 cartridge. Monster RCA connector upgrades.)
Oppo Digital DV-980H SACD/DVD player
Oppo Digital DV-970H SACD/DVD player
Sony Playstation 3
Sony BDP-S350 Blu-ray player

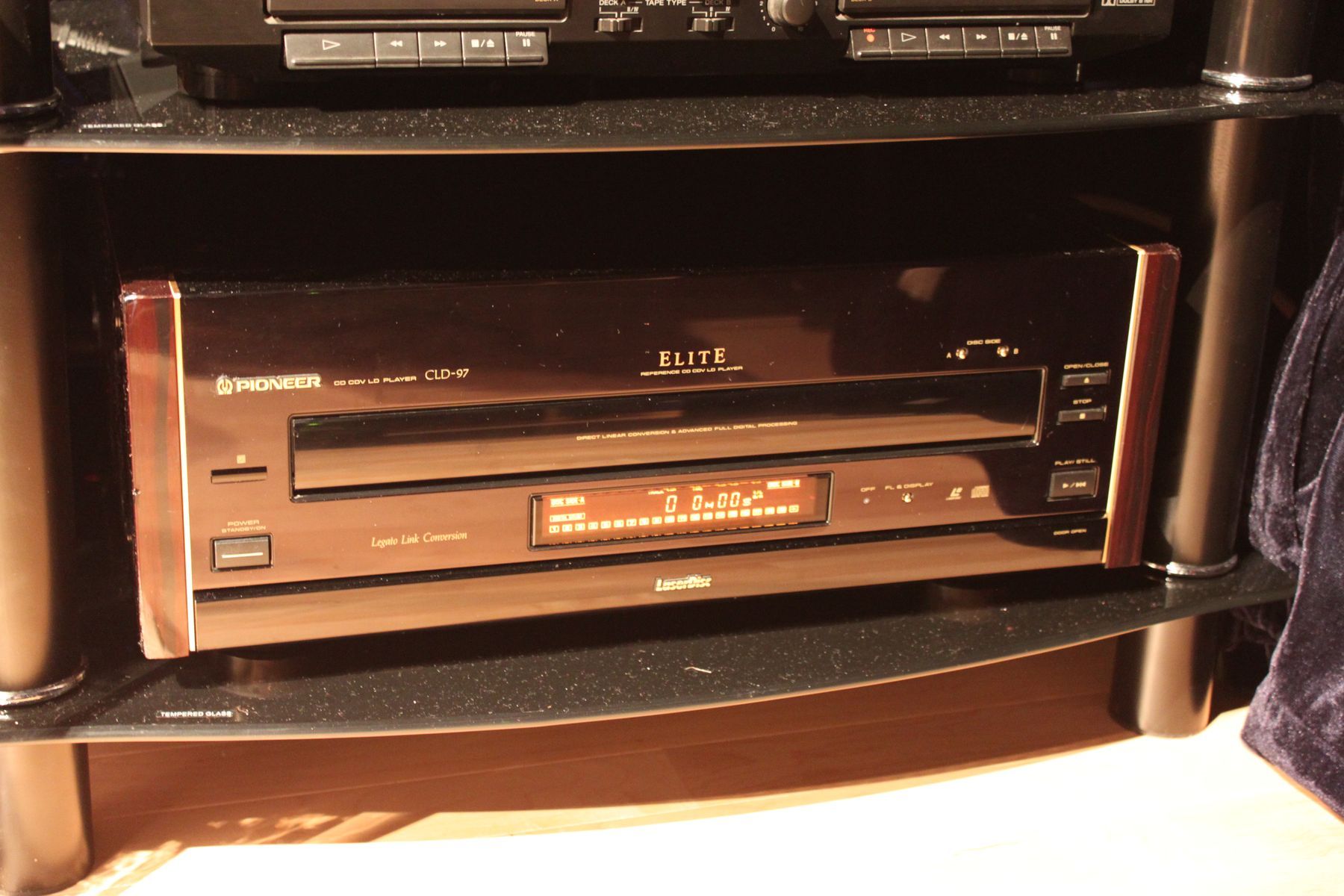

Pioneer Elite CLD-97 Laserdisc Player (with AC3 output mod and DNR Auto-off mod)
Pioneer Elite CLD-97 Laserdisc Player (with AC3 output mod), backup player
Pioneer CLD-D504 Laserdisc Player, 2nd backup player
Panasonic PV-9450 4-Head Hi-Fi VCR
Aiwa XC-30m 5 disc CD Player
Sony cdp-215 Cd Player
Sony TC-WE305 Dual Cassette Deck

Epson PowerLite Home Cinema 8700UB Projector
Elite Screens - Home Cinema - 150" Diag. Projector Screen

AVS Voltage Regulator
APC H15BLK AV 1.5kVA H Type Power Conditioner
Shunyata Research Inc. Powersnakes (x2), Venon PowerCable replacement powercords.

Media Server (Computer, over 17,000 audio tracks):
ASUS Xonar D2/PM Sound Card
Winamp media player w/ iZotope OzoneMP - DSP plugin

Walker Edison Everest Multilevel Component Stand (x2)
The room is approximately 24 x 23 feet with vaulted ceilings and approximately 150 12"x12" sound proofing panels and additional corner base traps to minimize perpendicular surfaces and distortion.
Acrylic speaker cable risers
Custom marble dampening coasters

updated: 12/3/13

Uploaded Dec 28, 2011 17:25:25

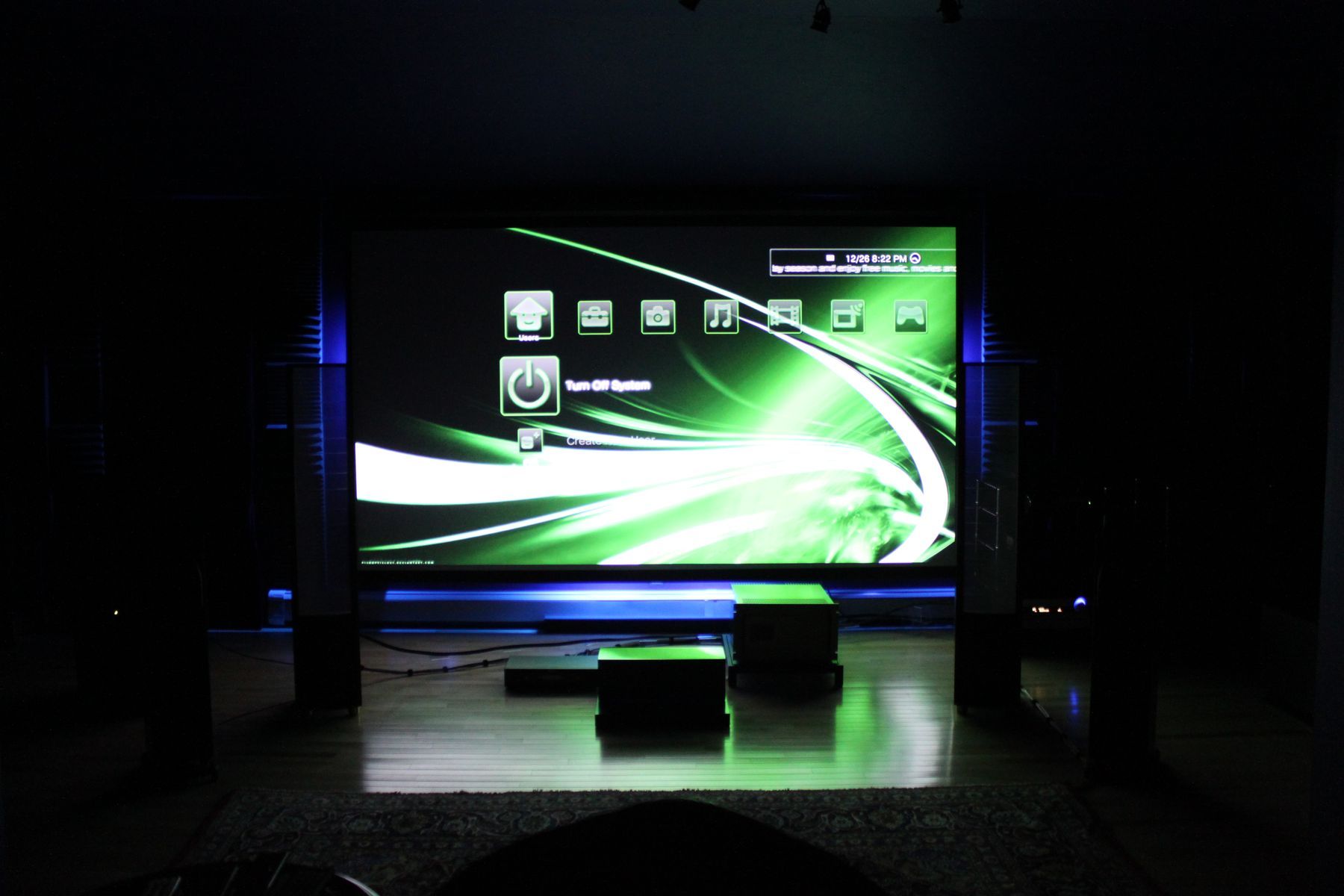

In the dark!

Uploaded Jun 01, 2011 14:35:34
There are about 150 1x1 ft soundproofing panels in the room that I mounted one at a time (that took awhile!).

Uploaded Dec 28, 2011 17:25:26

Uploaded Jun 01, 2011 14:35:40

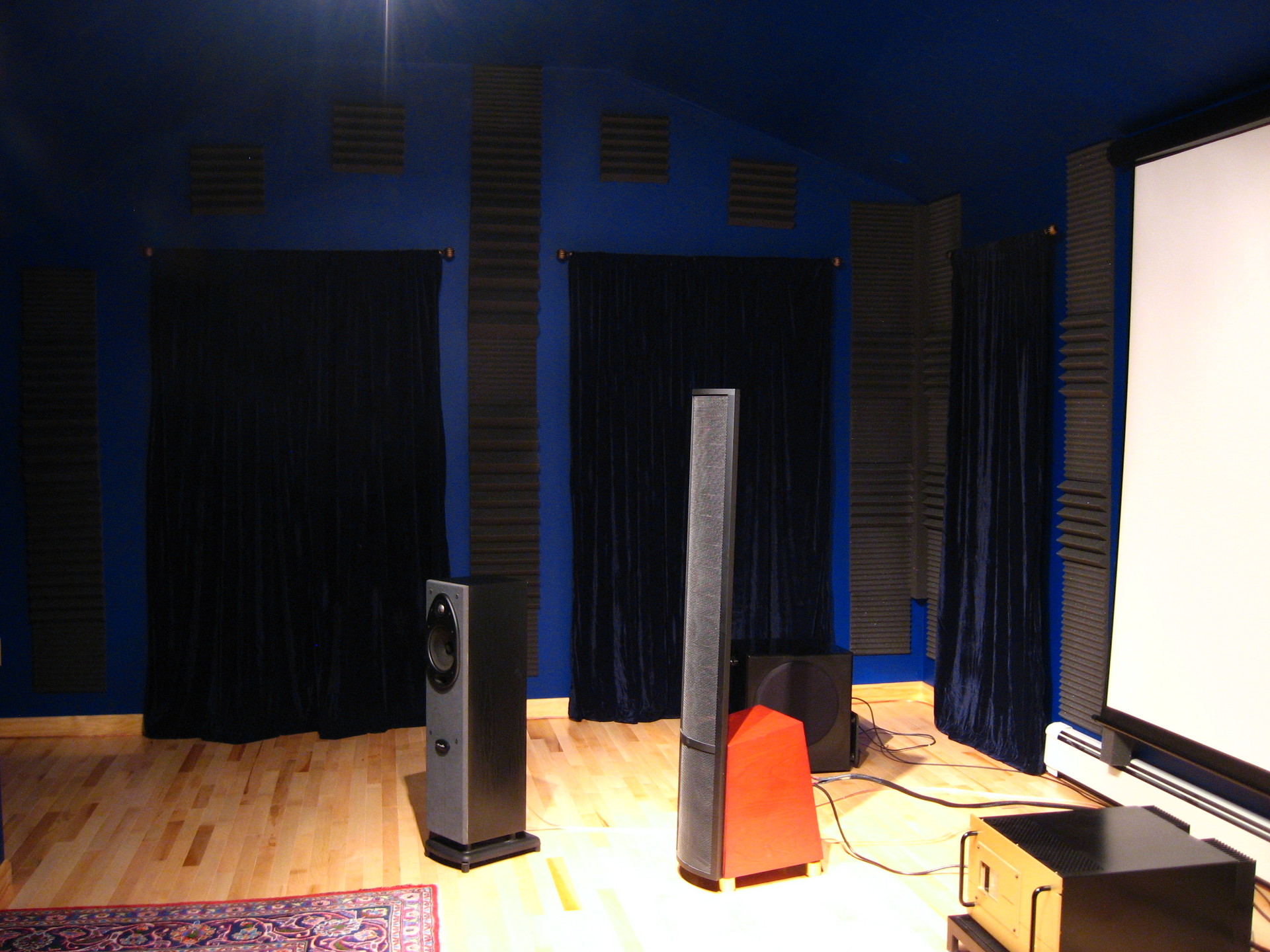

Side wall with sound proofing treatment.

Uploaded Jul 16, 2011 09:33:48

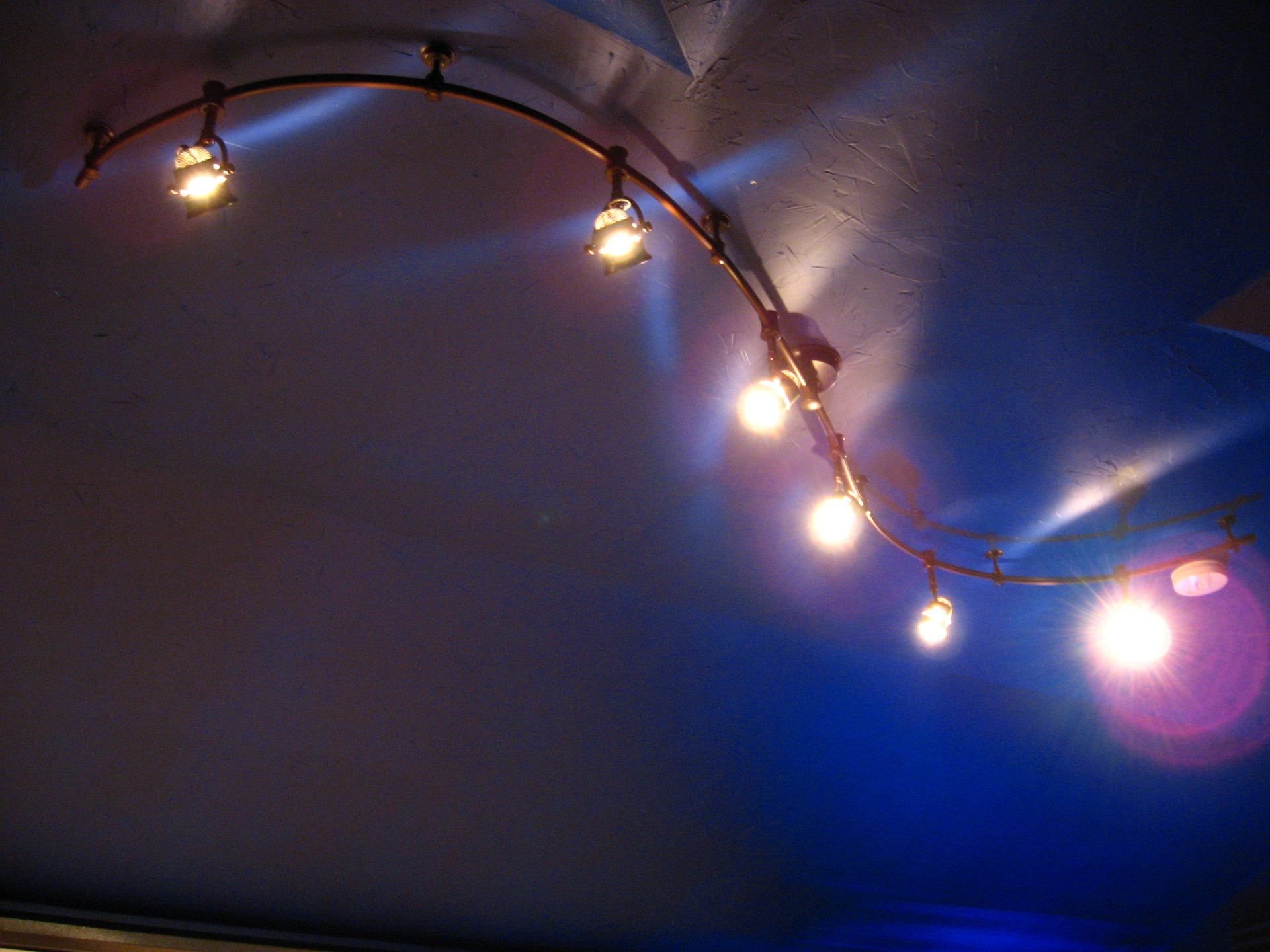

Dim controlled overhead lighting.

Uploaded Jun 01, 2011 14:35:37
   Epson 8700UB

Projector mount and room lighting.

Uploaded Jun 04, 2011 12:28:09

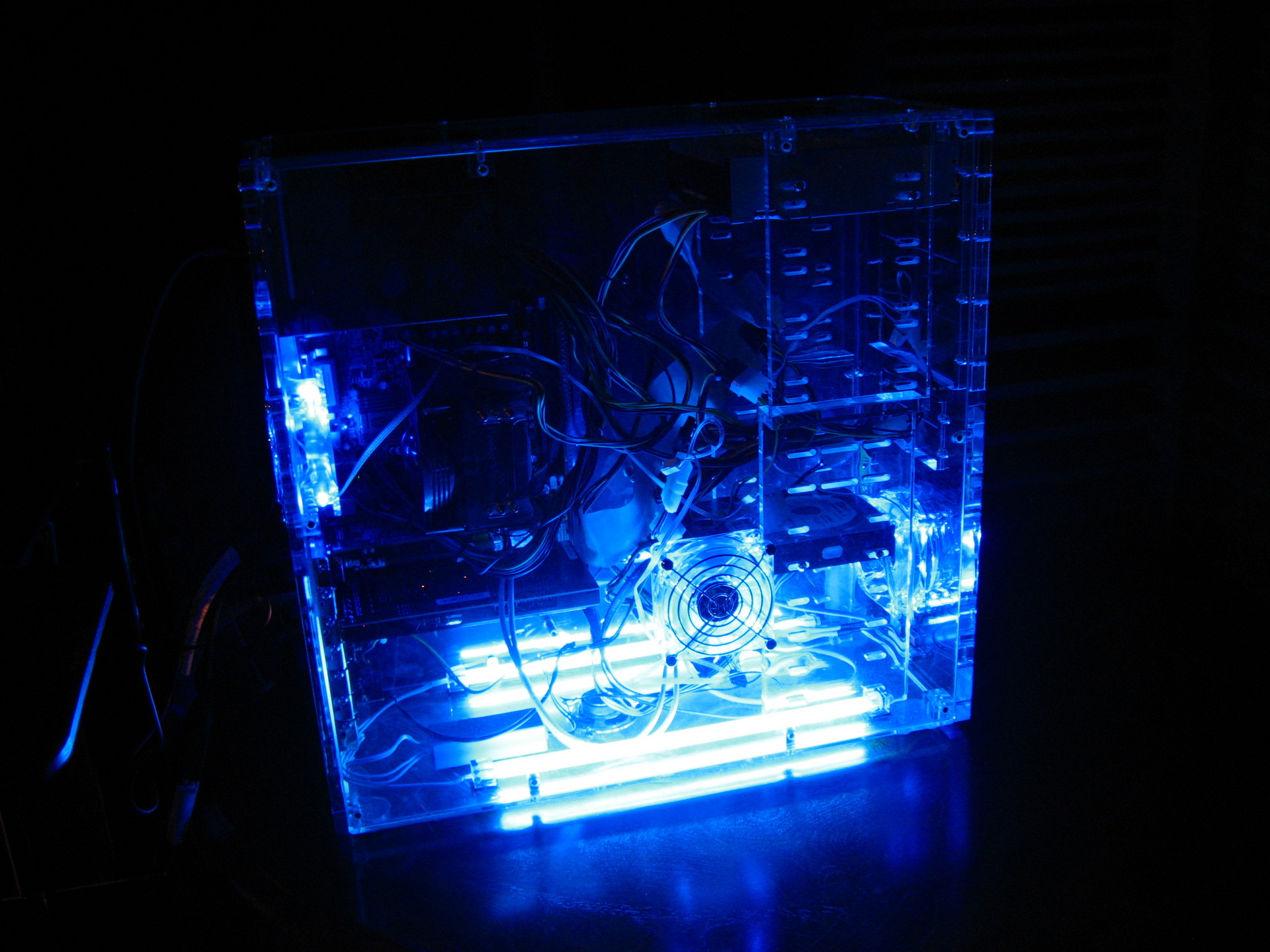

Media center with acrylic case and lighting.

Uploaded Jun 01, 2011 14:35:55

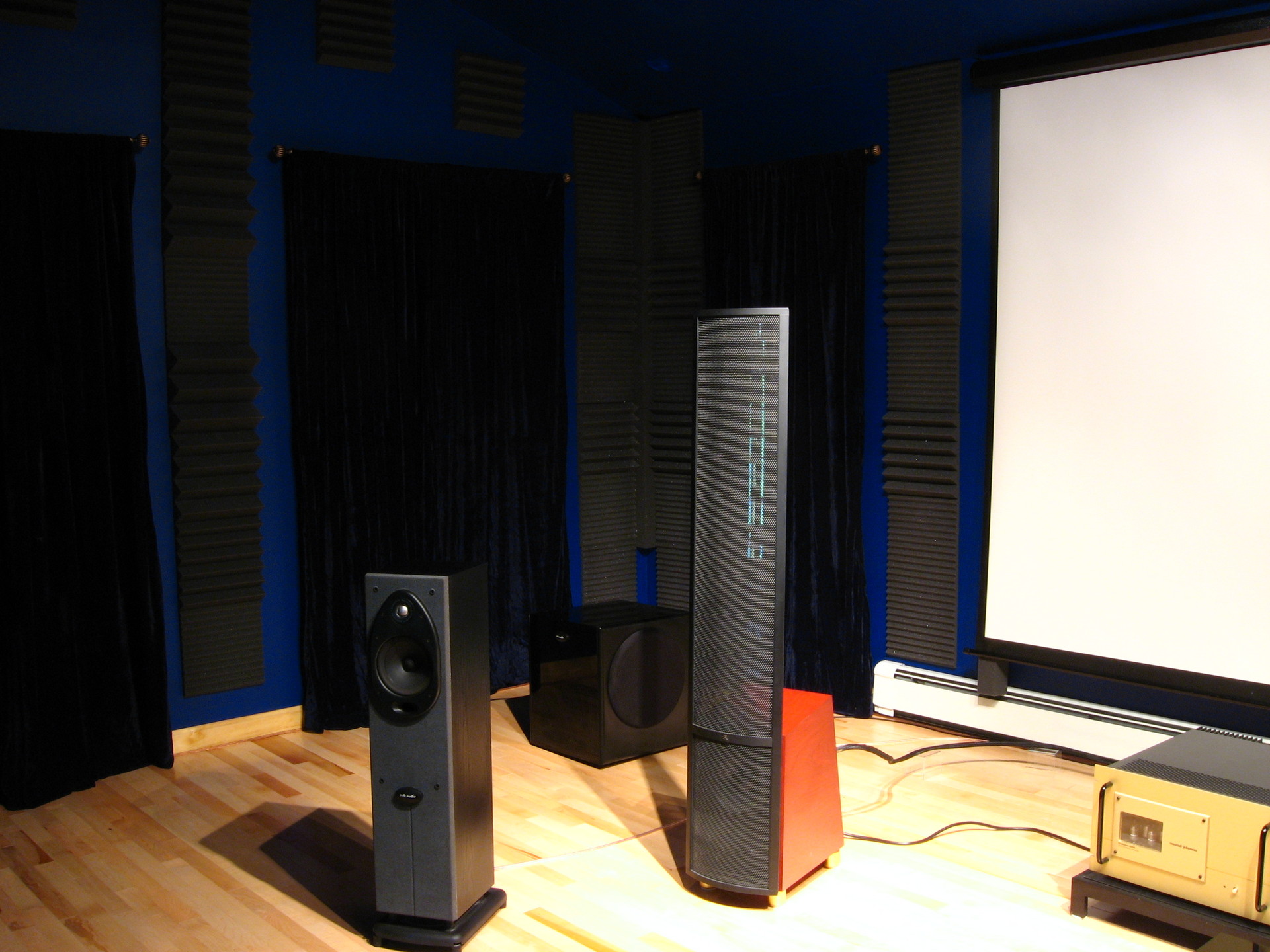

Martin Logans biwired.

Uploaded Jun 01, 2011 14:35:58

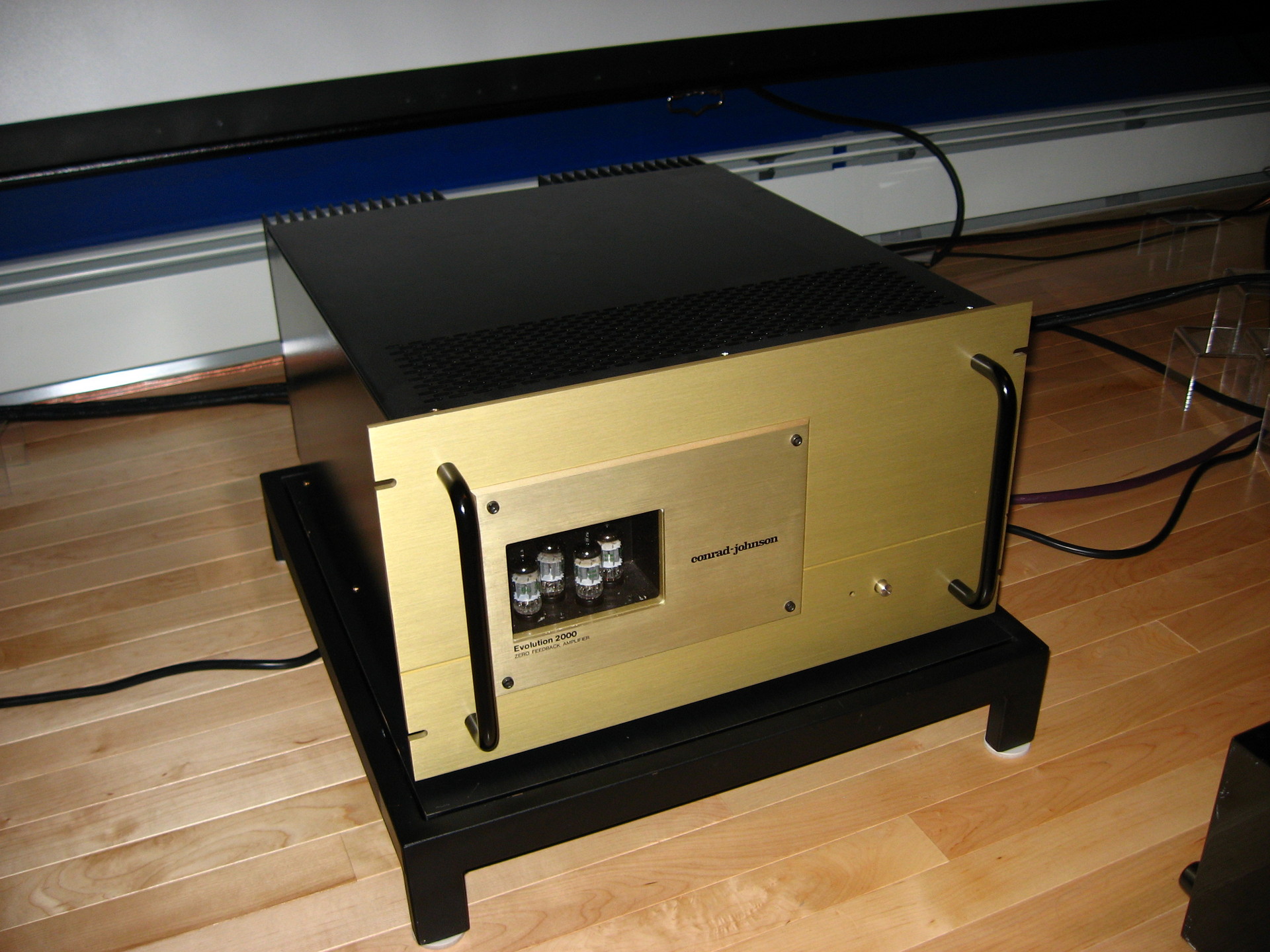

Conrad Johnson Amp. It weights 115 lbs,... needed some help getting it into position. I have it sitting on 4 audiophile jelly feet (not pictured) on the amp stand.

Uploaded Jun 01, 2011 14:49:41

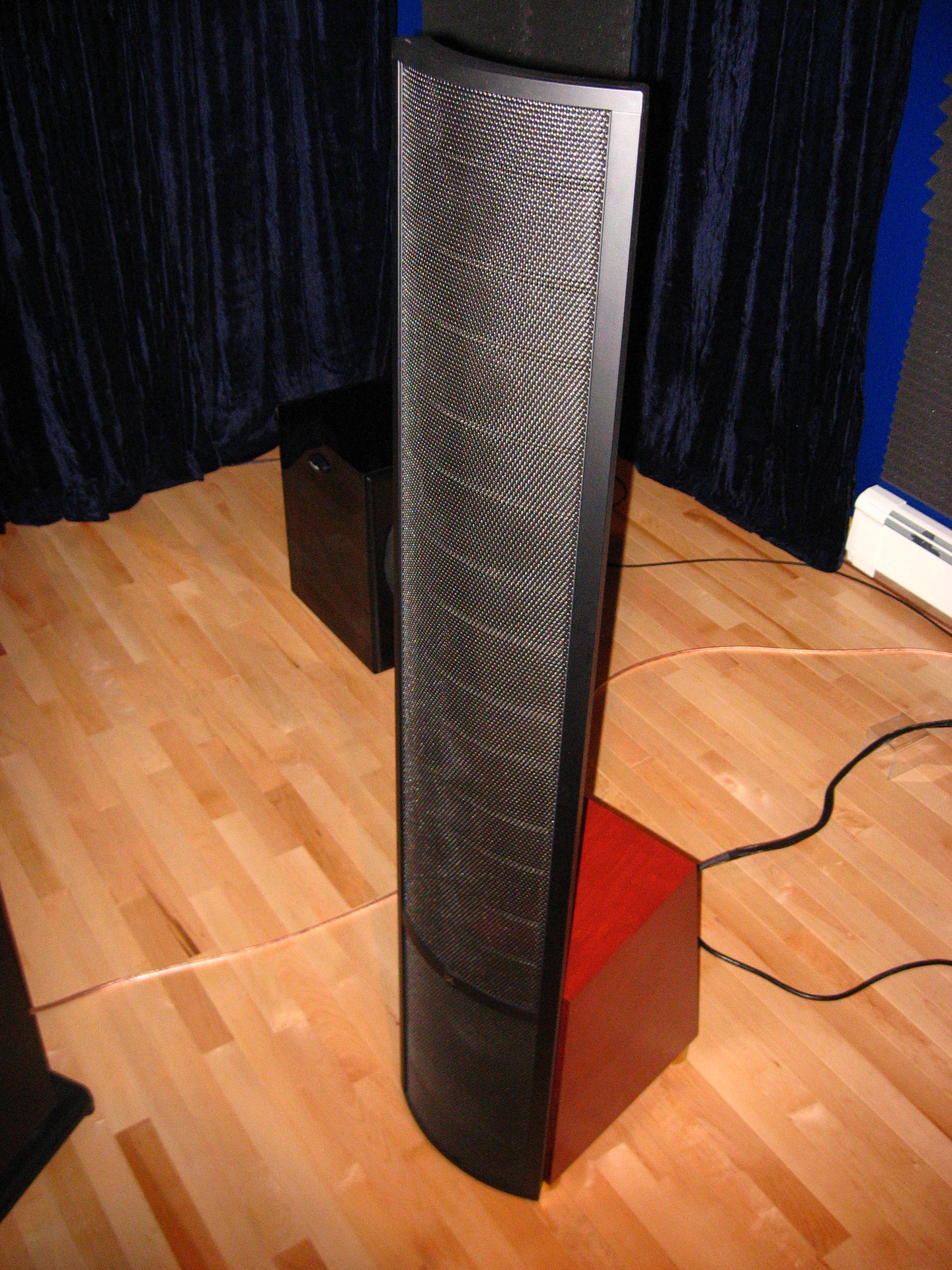

Martin Logan Speaker.

Uploaded Jun 01, 2011 14:40:38

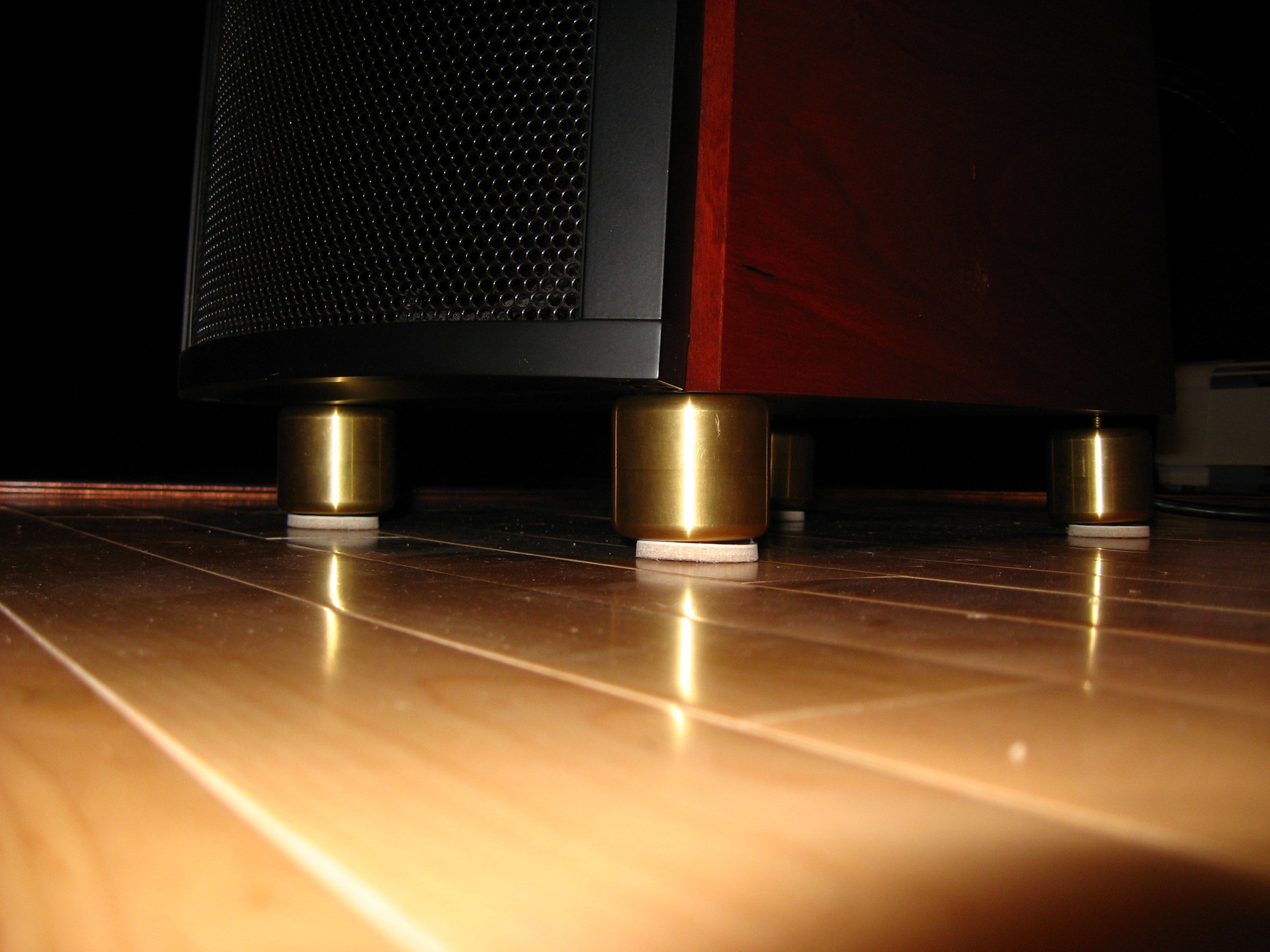

Custom feet for speakers.

Uploaded Jun 15, 2011 11:05:10
Left corner subwoofer.

Uploaded Jun 01, 2011 14:40:44

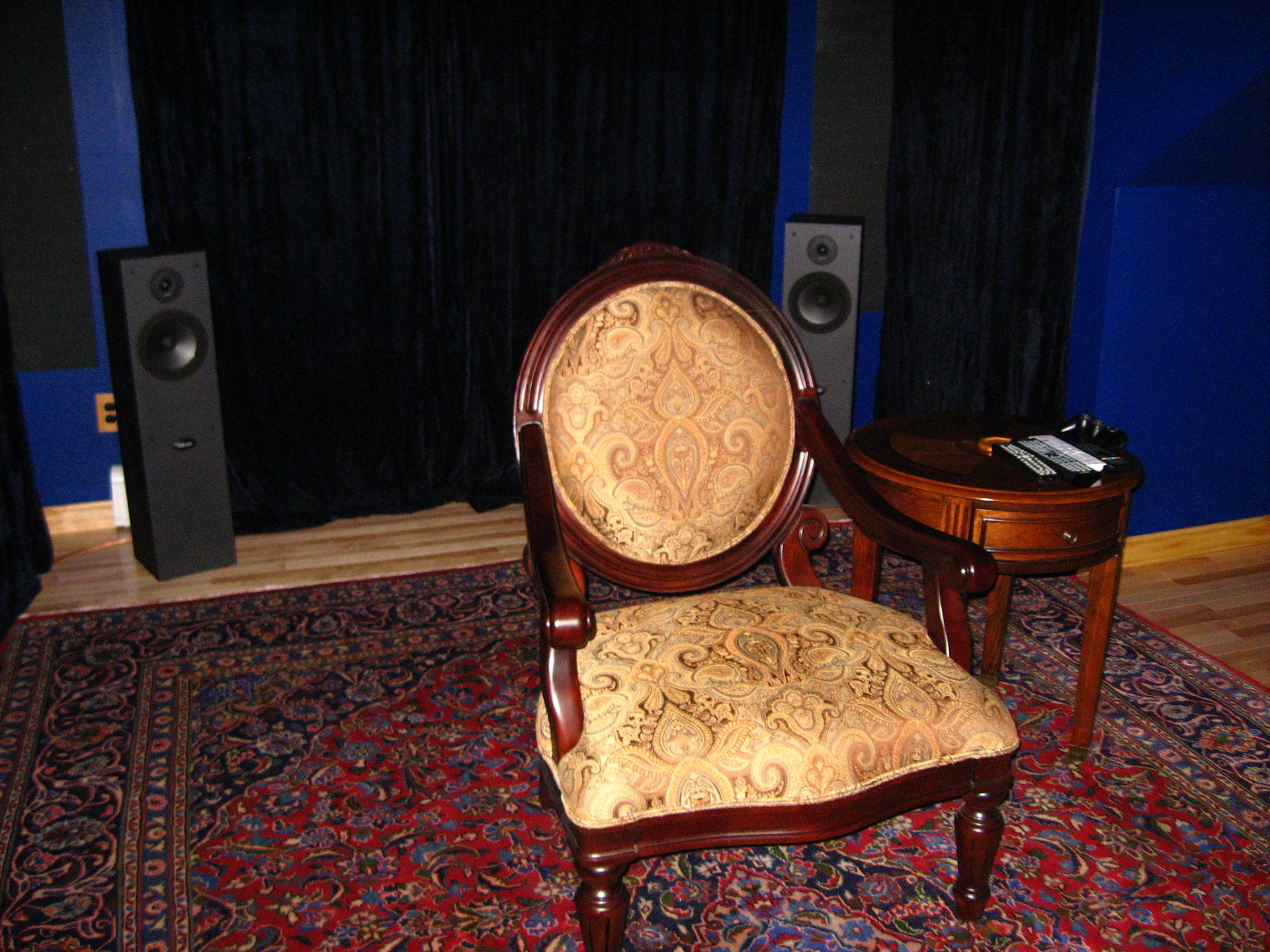

My place of Zen!

Uploaded Jun 01, 2011 14:40:46

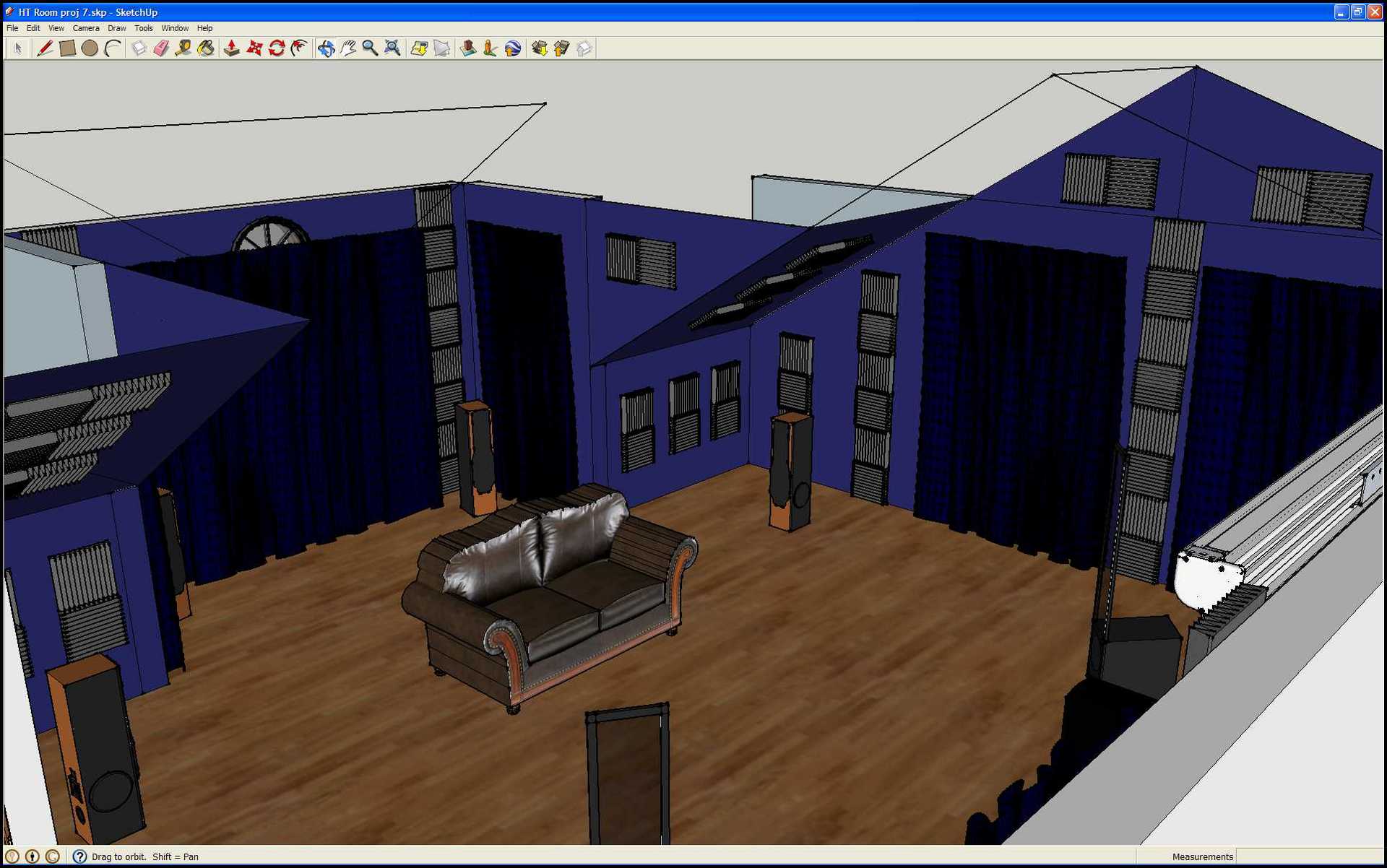

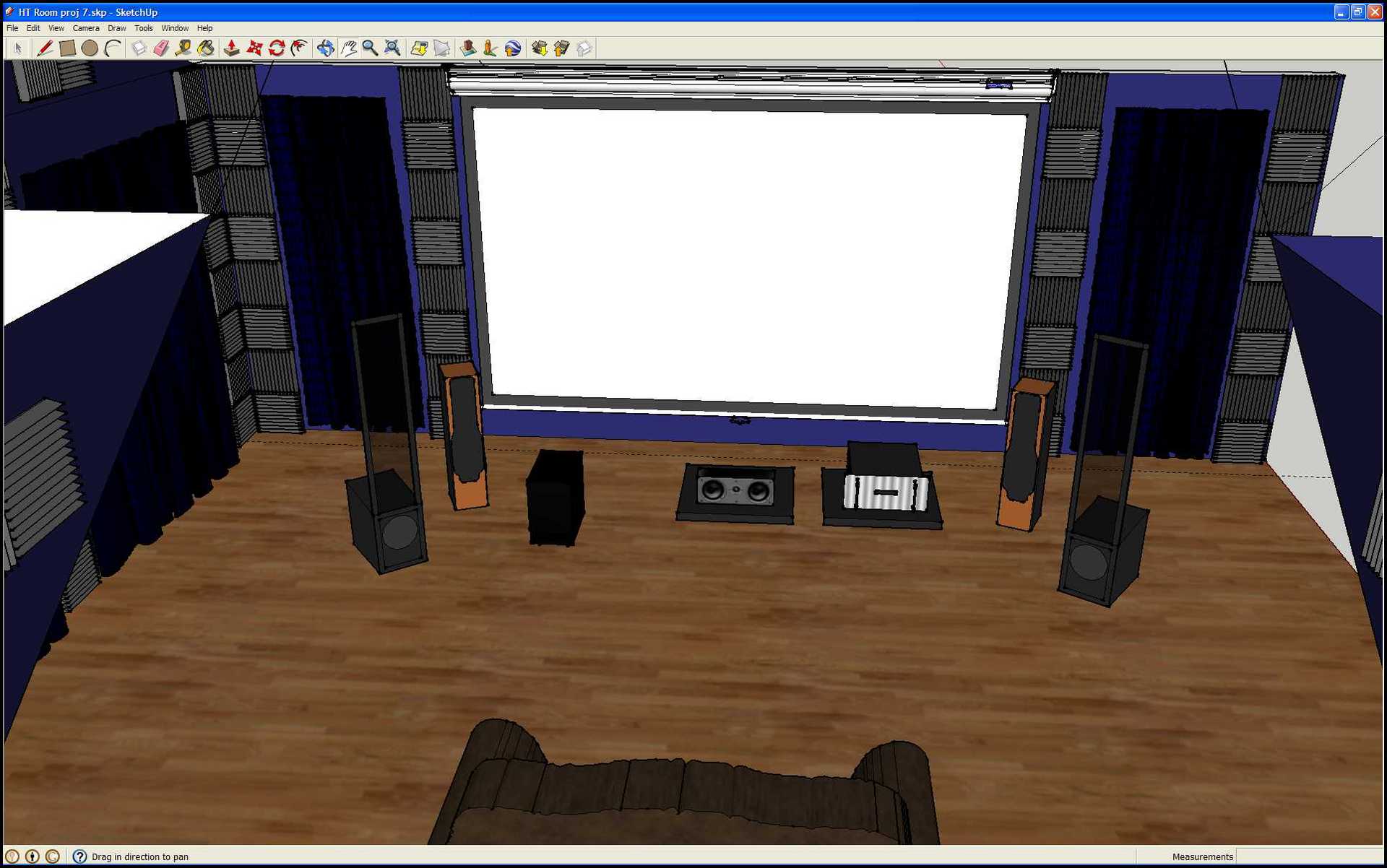

Initial plan before room build.

Uploaded Jun 01, 2011 14:40:47
Initial plan before room build.

Uploaded Sep 20, 2011 08:55:09

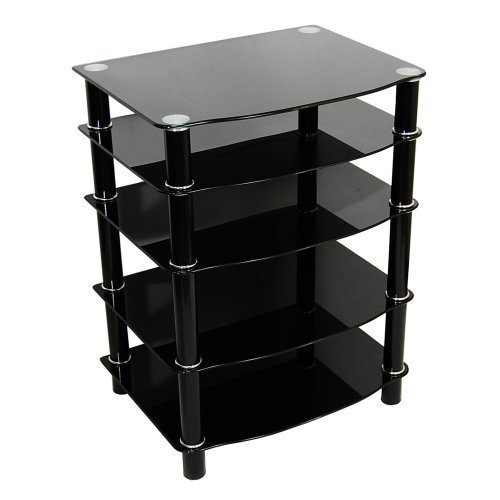

Bought 2 of these to replace my current audio rack. I want to get the receiver off the floor and into the rack, and I also want to move the laserdisc player to a lower shelf. Hopefully this will give me the space I need. I will post pics once I have it all set up.

Uploaded Oct 09, 2011 14:47:19
New racks setup. Removed the old taller one and now I have 10 shelves to play with! I like this setup much better.

Uploaded Oct 09, 2011 14:48:01

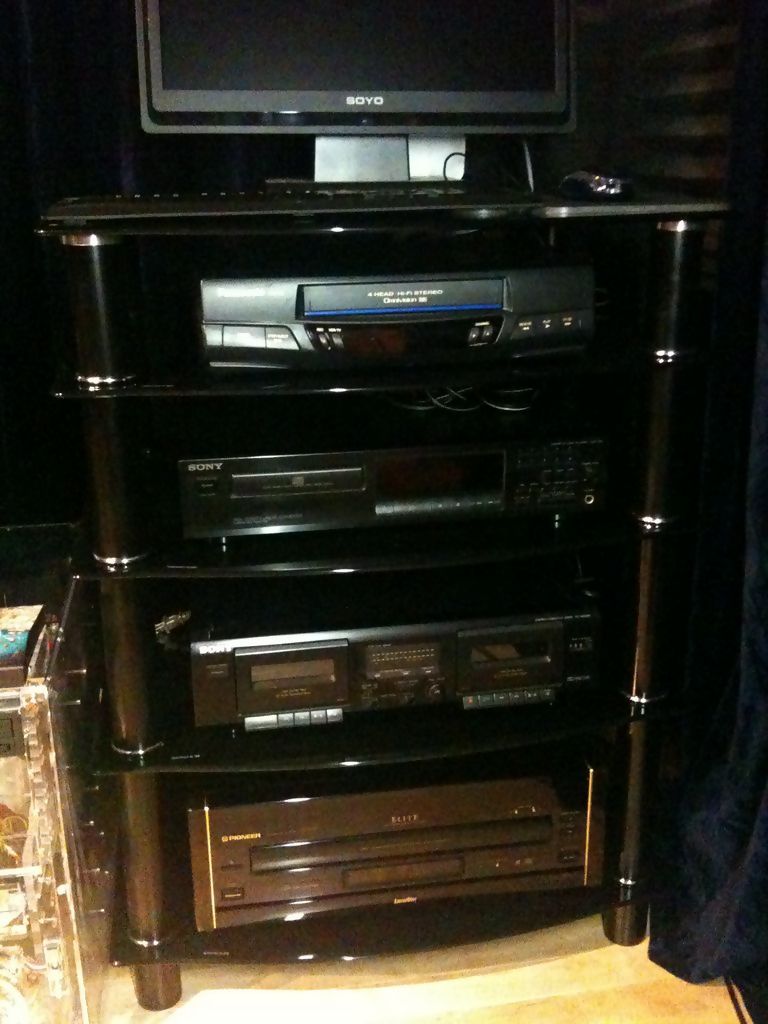

I guess you could call this the "old" rack. VHS, tape, laserdisc.....

Uploaded Oct 09, 2011 14:50:44

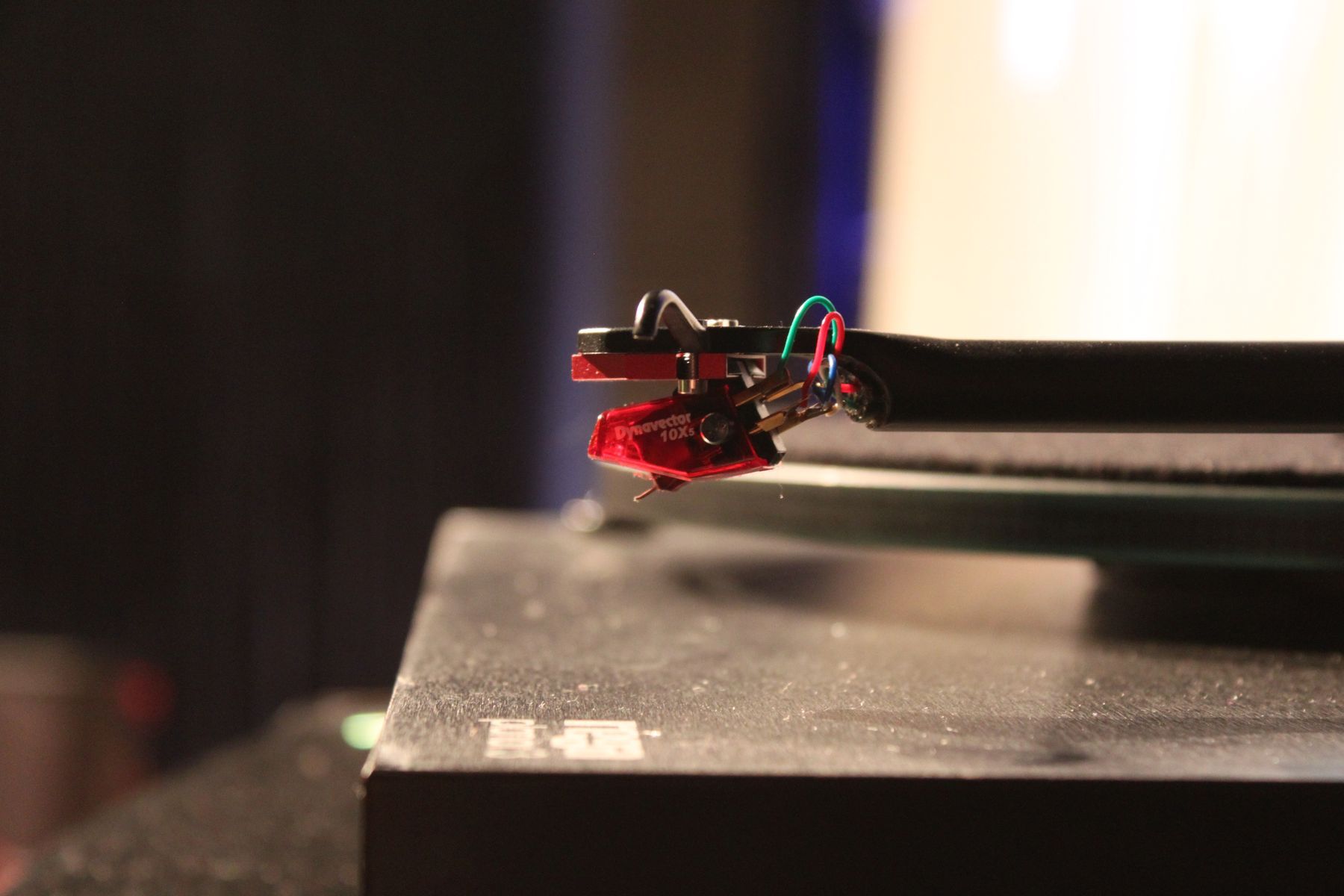

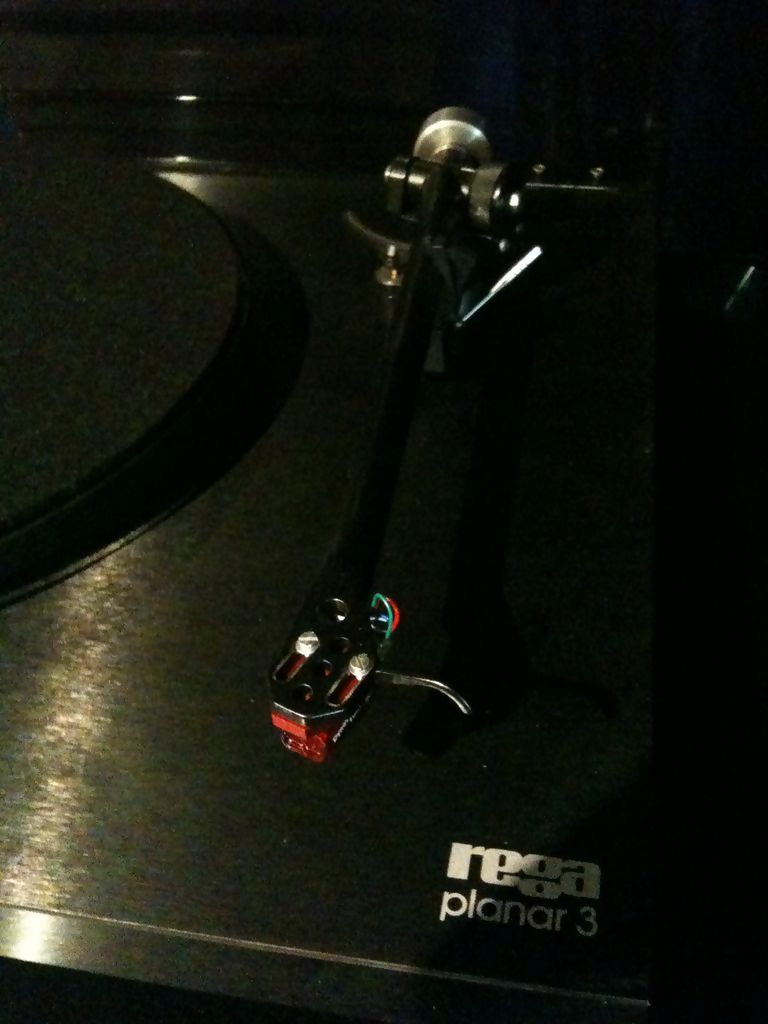

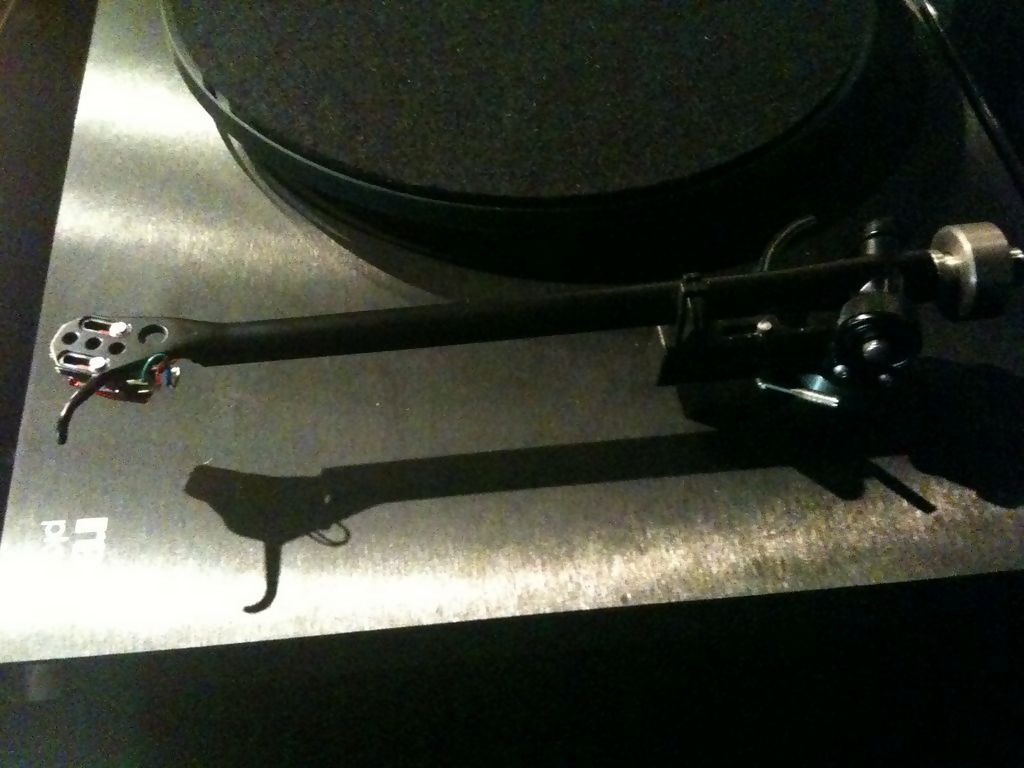

The classic Rega RB300 tonearm

Uploaded Oct 09, 2011 14:50:45

Uploaded Dec 28, 2011 17:00:11
A highly "stylized" view of my Martin Logan Vantage speaker... perhaps a good wallpaper for my computer?

Uploaded Dec 28, 2011 17:25:28

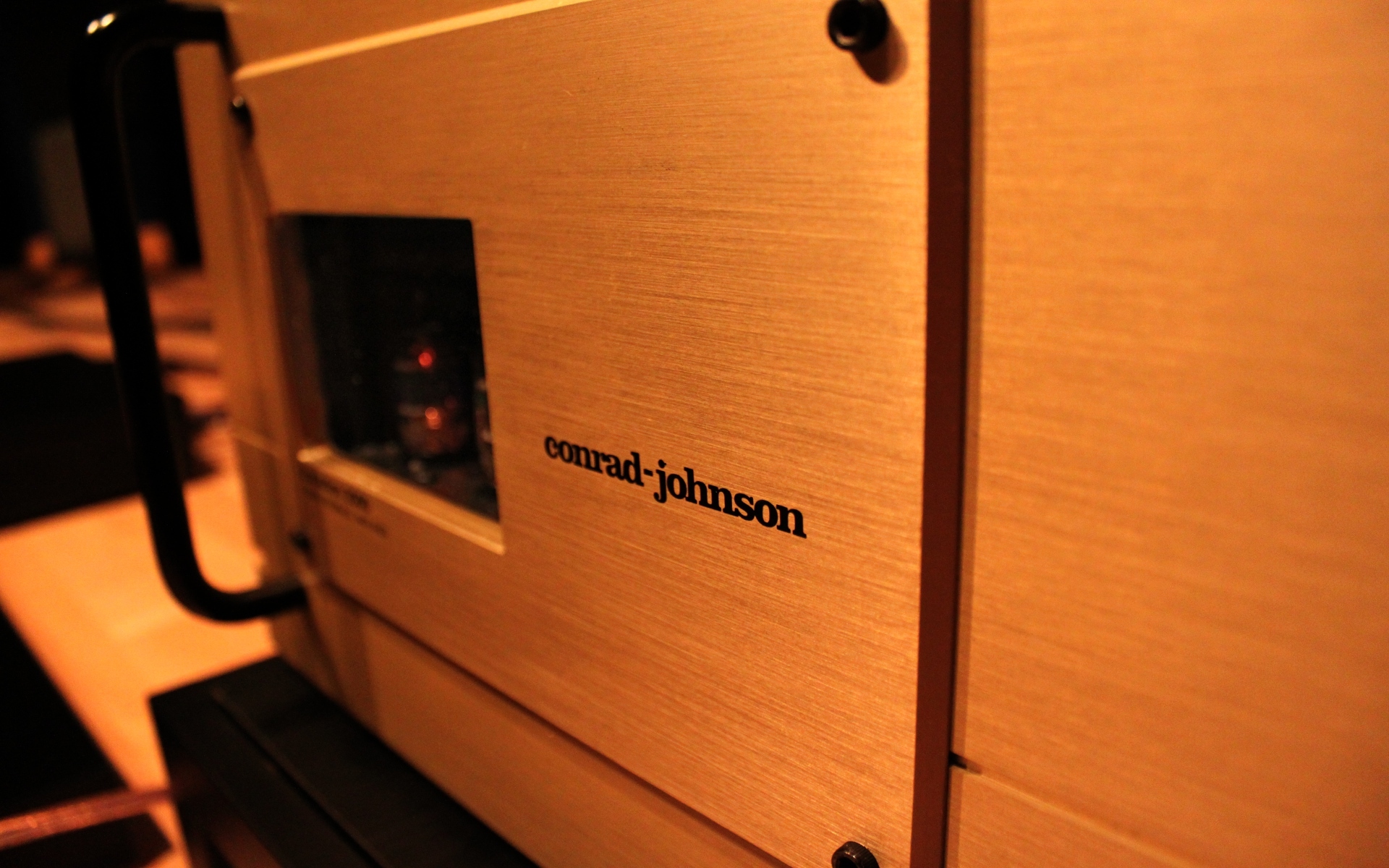

Conrad Johnson Amp

Uploaded Dec 28, 2011 17:25:30

Uploaded Dec 28, 2011 17:25:38

Uploaded Dec 28, 2011 17:25:39

Uploaded Dec 28, 2011 17:25:41

Uploaded Dec 28, 2011 17:39:29
1900x1200 shot for a good computer wallpaper.

Uploaded Feb 13, 2012 21:12:41

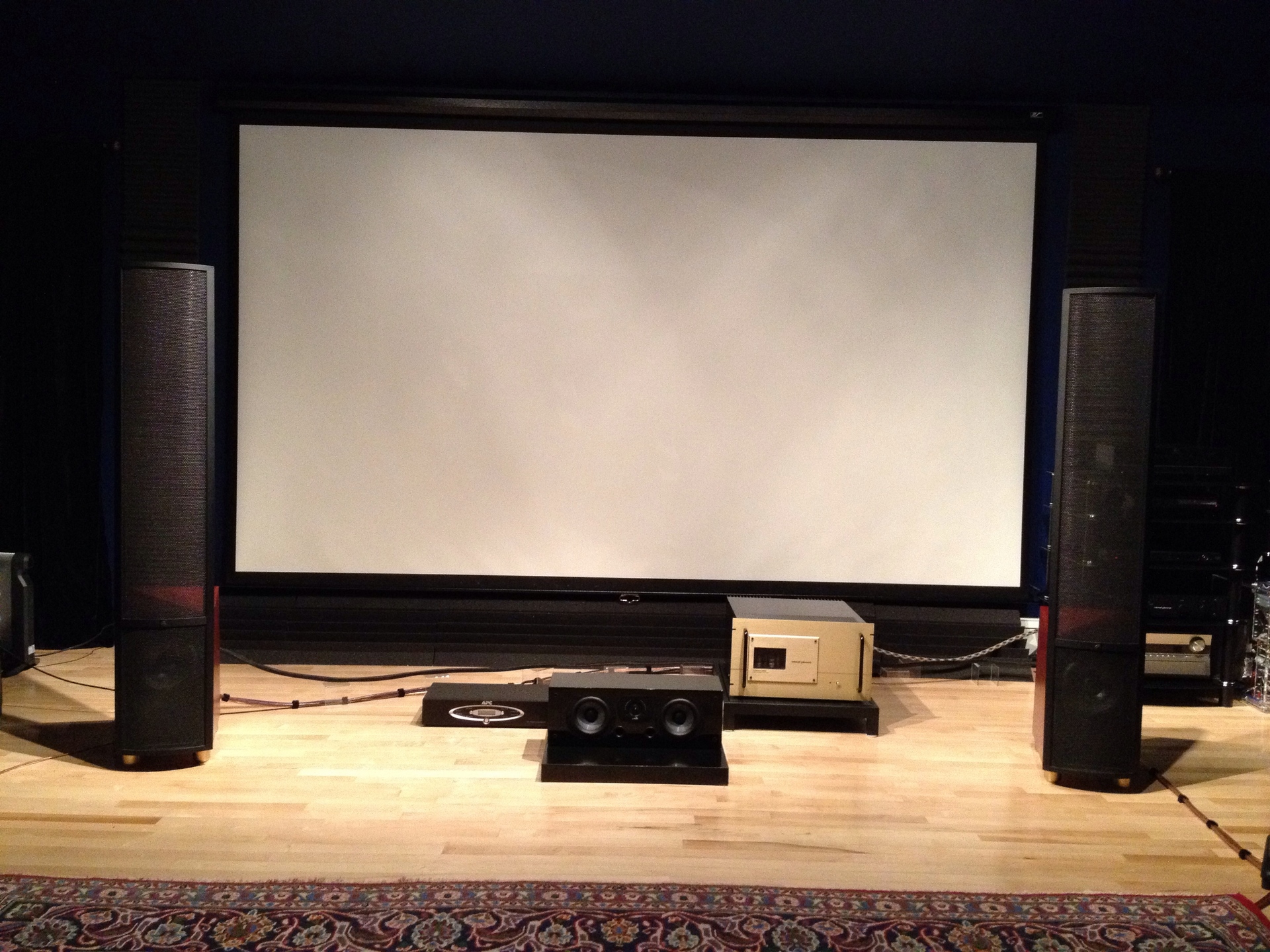

Installed 12 feet of base traps under the screen. I wanted to block out the white color of the baseboard and at the same time improve the acoustics of the room. Tried to kill two birds with one stone,... I think it turned out fairly well.

Uploaded Feb 13, 2012 21:12:45

Uploaded Dec 03, 2013 18:48:12

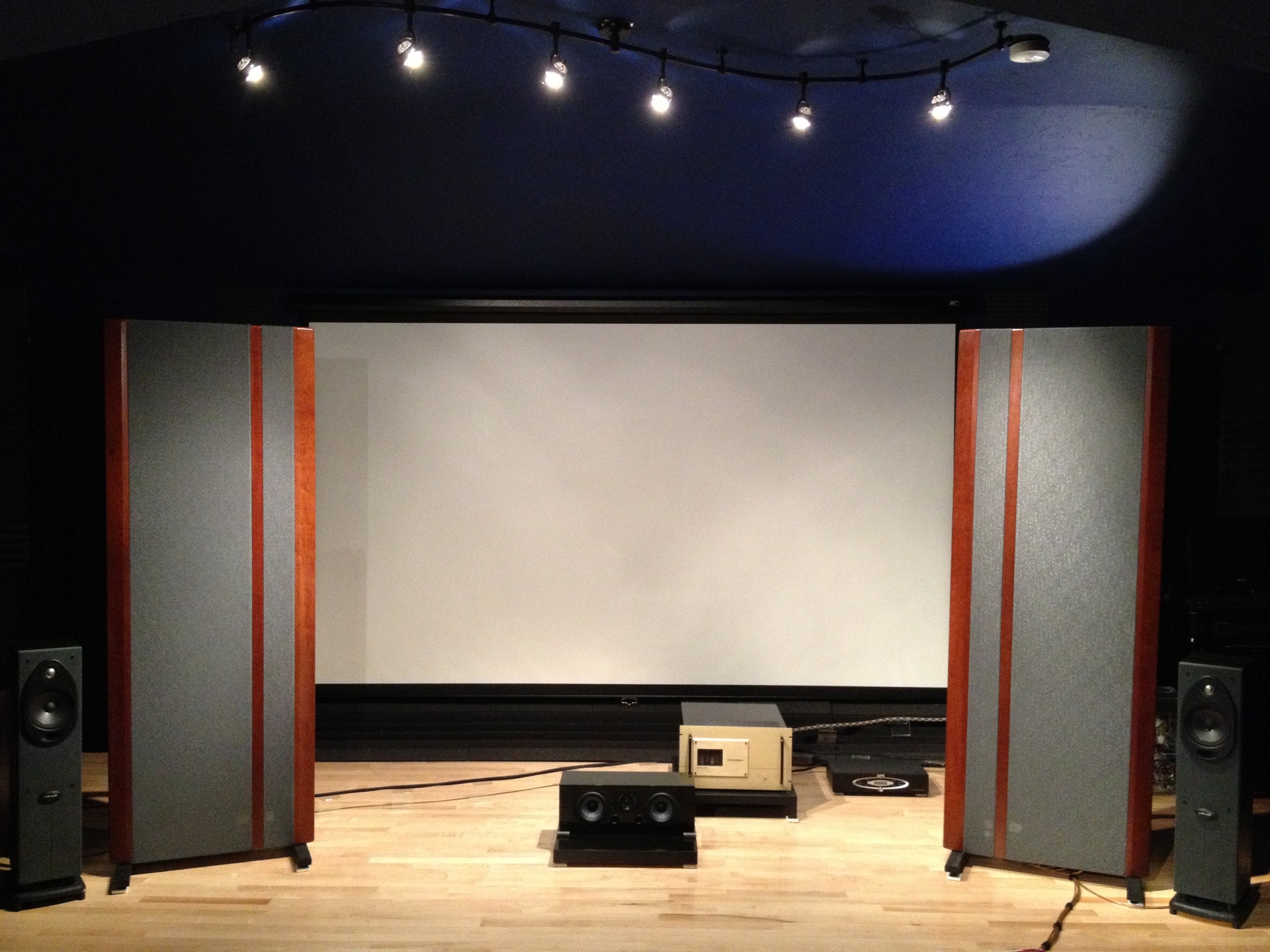

Upgraded the main Speakers from Martin Logan Vantages to highly modified Magnepan MG 20.1's with custom bases. The upgrade is truly magnificent sounding!
